Description
More Information
Description

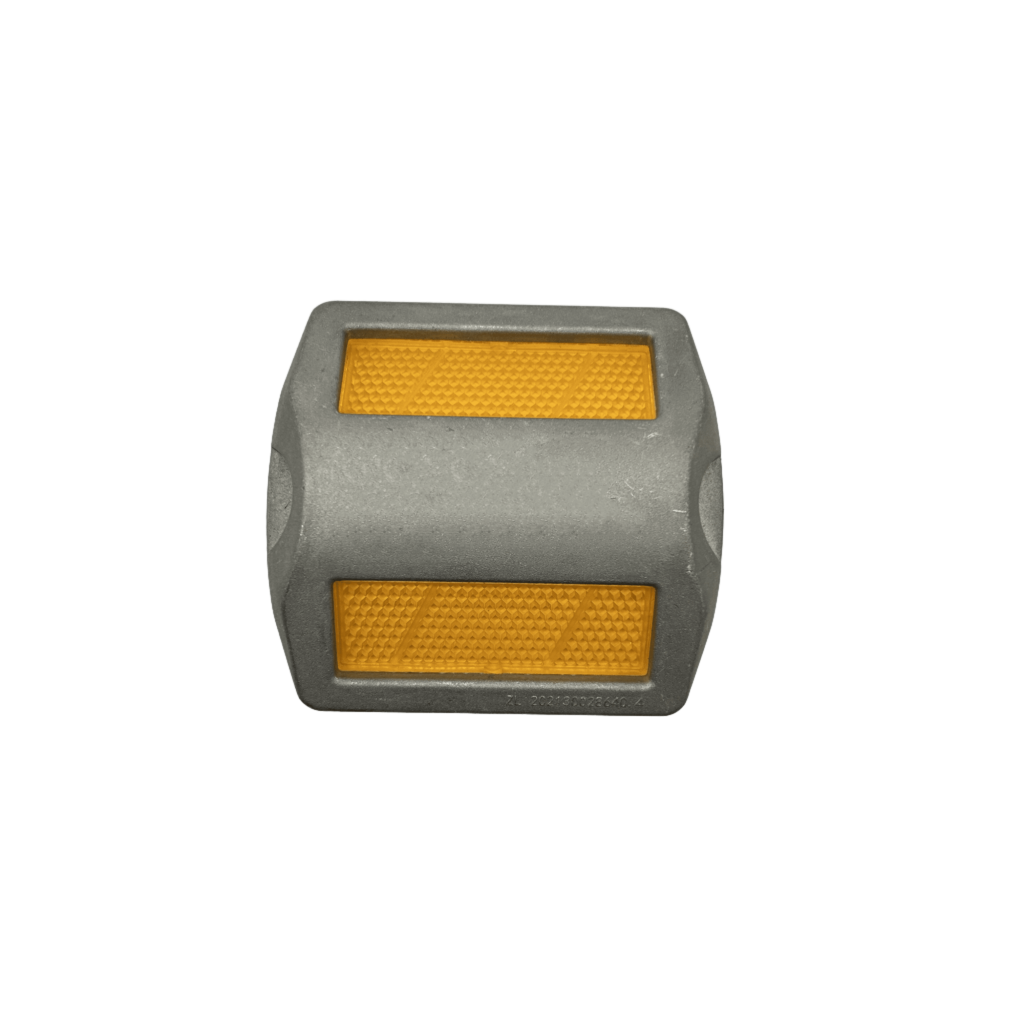

Item No.:YR-A01
High loading ability over 40 Tons for busy traffic roads
Size:100x90mm, shank:45x18mm
Net Weight: 310gram
More Information
- Material: High compressive strength with the strong structure of aluminum shell and PMMA lens, 100% dust-proof and waterproof due to the ultrasonic welded reflector structure.
- Color: White, Amber, Red, Green, Yellow.
- Compressive strength: 40 tons
- Installation: bitumen or epoxy resin.
- Package: 50pcs/carton, carton size: 38x36x22cm, G.W.:16KGS
- Regulation: ASTM D4280, EN1463
- Circumstance:-30°C – 85°C.
Description
More Information
Description
Item No.: YR-P09

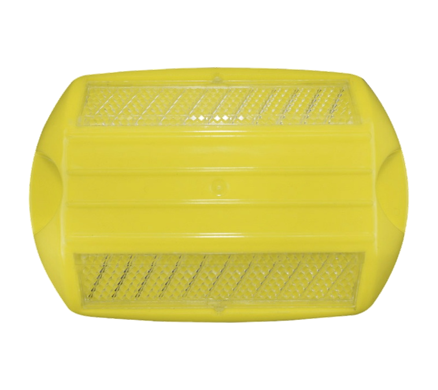

New design road marker
Size: 101mm x 90mm
Lens reflector size: 67mmx22mm
Net Weight: 90gram.
More Information
- Raw Material: High-pressure injected ABS housing with abrasion resistance PMMA lens, 100% dust-proof and water-proof due to the ultrasonic welded reflector structure.
- Color: White, Yellow, Red, Blue and Green. ( 1 face/ 2 faces)
- Compressive strength: 16 tons
- Installation: bitumen, epoxy resin or butyl rubber.
- Quality Guarantee (resistance to sun and moisture): 8 years.
- Working Temperature: -30℃ ～ +80℃
- Package: 100pcs/box, 56x22x22cm, G.W.:10kgs
- Regulation: EN1463-1 and ASTM D 4280.
Circumstance: -20°C ~ 80°C.
Description
More Information
Description
Item No.: YR-P01.

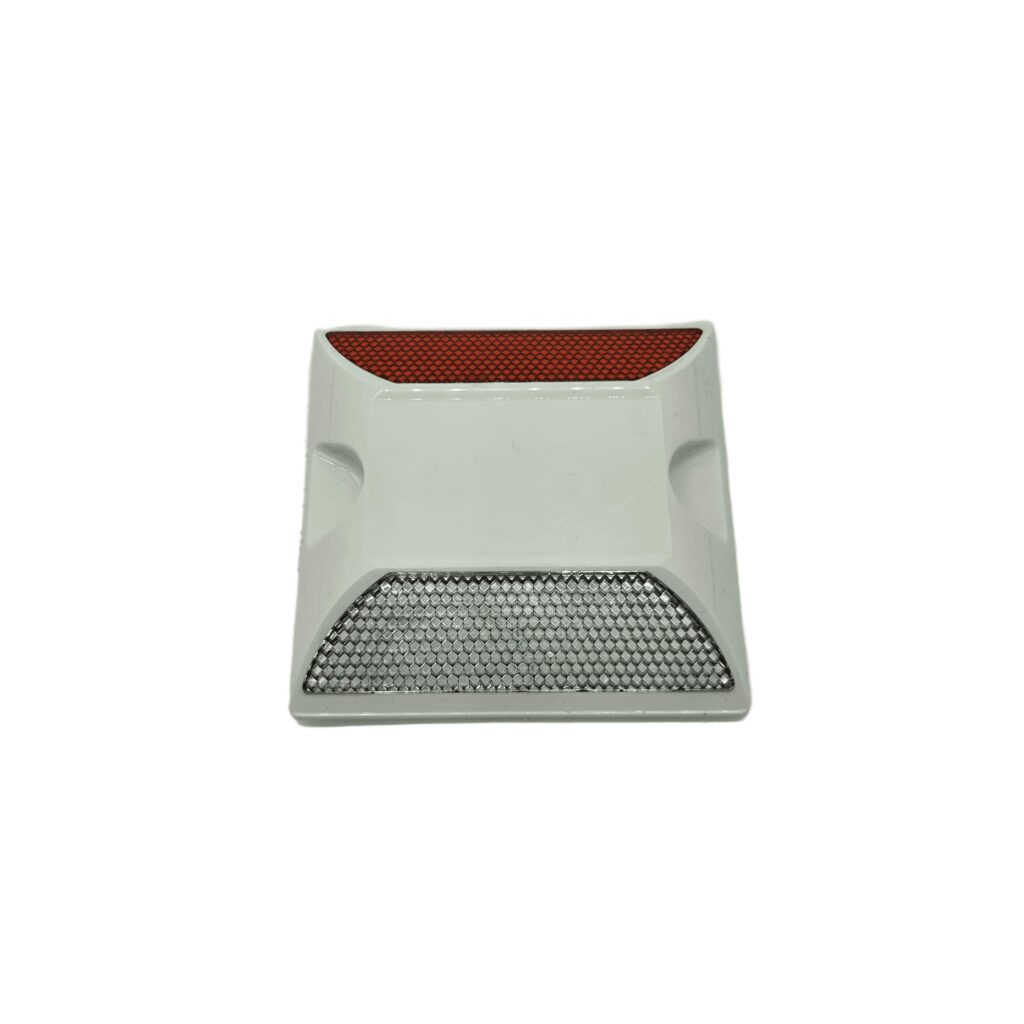

Square road marker with quartz sand filled in the back.
Net Weight: 190g.
Dimension: 100mmx100mmx19mm.
More Information
- Color: White, amber, red, green and blue.
- Material: ABS shell+acrylic lens with sand filled on the back.
- Compressive strength: 16 tons.
- Installation: bitumen, epoxy resin, or butyl rubber.
- Package: 20pcs/box,5 boxes(100pcs)/carton, carton size: 56×22.5×22.5cm,G.W.:19.16kgs.
- n Regulation: EN1463-1 and ASTM D 4280.
- Circumstance: -20°C – 85°C.
80°C.

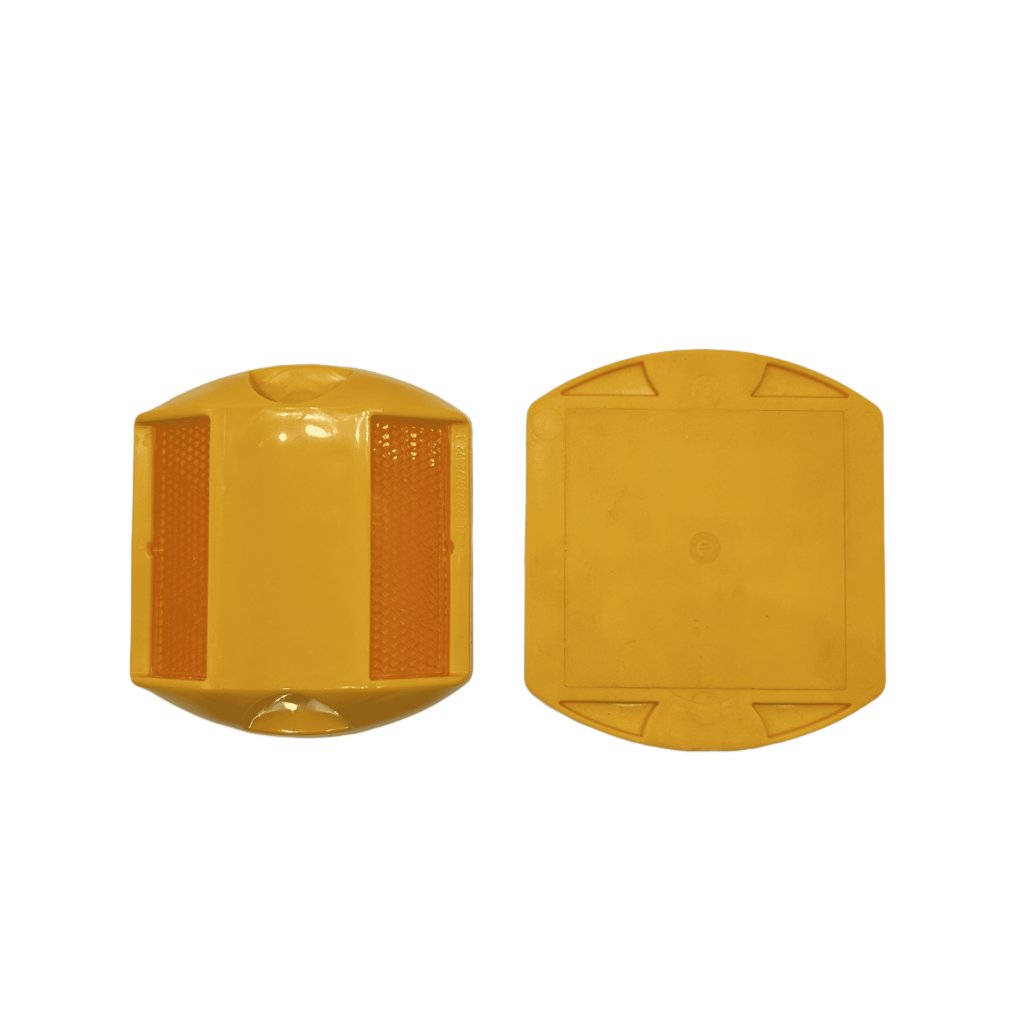

- Item No.: YR-P02.
- Net Weight: 95g.
- Dimension: 115mmx87mmx18mm
- Color: White, yellow, red.
- Material: High-class anti-UV ABS housing and acrylic lens reflector
- Compressive strength: 18 tons.
- Installation: bitumen or epoxy resin.
- Package: 100pcs/carton, carton size: 51x25x19cm, G.W.:10kgs.
- Regulation: EN1463-1 and ASTM D 4280.
- Circumstance: -30°C ~ 85°C.
Description
More Information
Description
Item No.: YR-S01

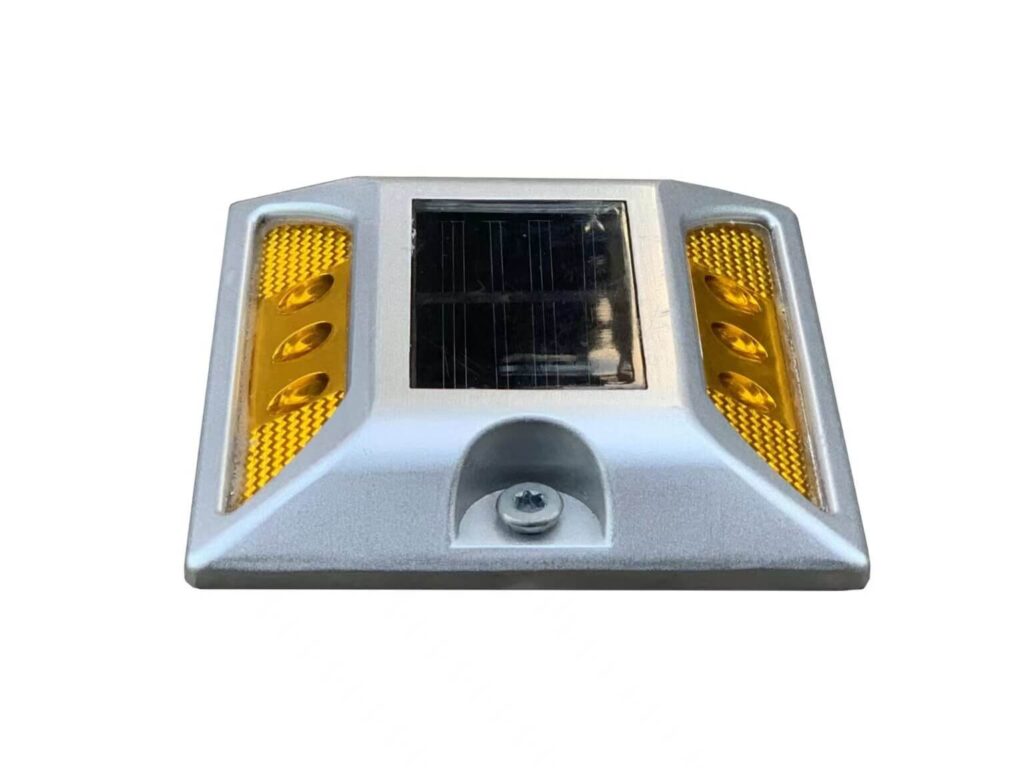

Aluminum Solar Led Studs
Size: 115x110x23mm
Net Weight: 350g.
More Information
- Material: Anti-UV and Bullet-proof PC cover board; Enhanced ADC 12 aluminum Die-casting housing;
- Solar Panel: 2V/100MA mono-crystalline (Class A).
- Battery: 1.2V/600 MAH high-temperature NI-MH Battery.
- LED: Super bright LED (Dia.φ5mm) , with reflective lens; 3pcs/side.
- Color: White, Red, Yellow, Blue and Green.
- Activated light intensity: 400-500Lux.
- Visual Distance: 1,000 meters.
- Charge time: 8 hours; average 4-5 hours /day.
- Working time: over 120 hours (under full charge).
- Working Mode: Flashed (90 times/min) / Constant.
- Working Temperature: -20℃～+80℃ Life Span: 3-5 years
- Water Proof: IP 68 Loading ability: (in static) : > 28Tons.
- Quality Guarantee: 12 months.
- Package: 2pcs/inner box, 60pcs/carton, size: 38x28x27cm. G.W.: 22.5KGS
Description
More Information
Description
Item No.: YR-S02

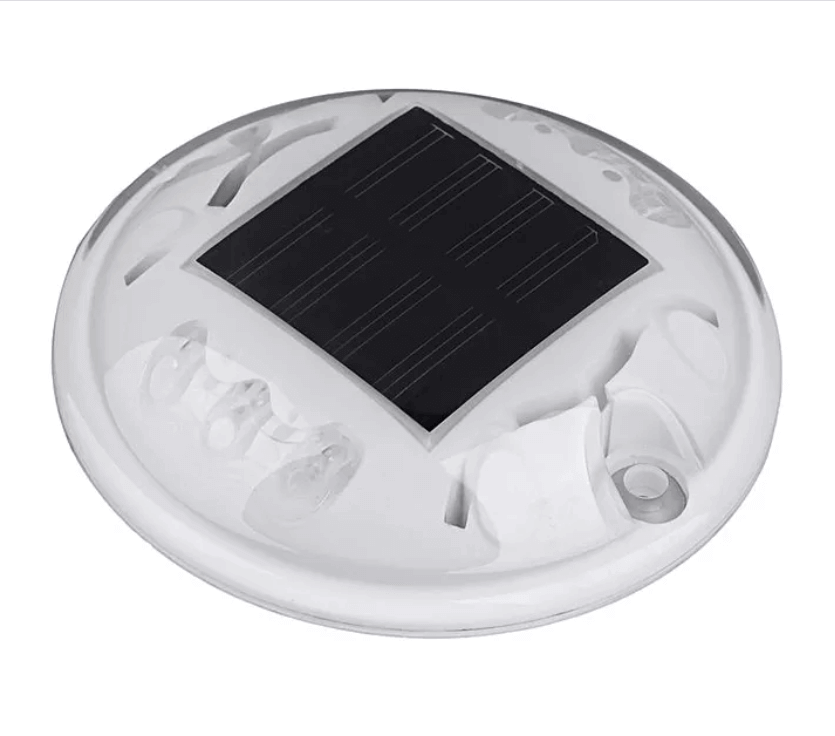

360 degree solar marker
Net Weight: 250g.
Dimension: Dia. 122x23mm(height).
More Information
- LED Color: White, amber, red, green, blue
- LED size and quantity: 6pcs or 10pcs diameter 5mm with high Brightness.
- Material: PC.
- Battery: 1.2V/600MAH high temperature resistance NI
- MH Battery.
- ◆ Solar panel: 2V/100MA mono-crystalline.
- Working mode: flashing for 90 times per minute or constant.
- Working hours: 160h for flashing; 40h for constant;
- Visual distance: >800 meters.
- Light intensity: 400-500lux.
- Circumstance: -20°~ 80°.
- Waterproof: IP68.
- Life span: 3-5 years.
- Loading resistance: 20 Tons.
- Installation: bitumen or epoxy resin.
- Package: 2pcs/box, 30 boxes(60pcs)/carton,
- carton size: 67x28x20cm,G.W.: 17kgs
